Re: Bilstein B14 Coilovers - M135i

Post by mick.86uk » Mon Apr 30, 2018 6:38 pm

Finally got round to fitting the B14 coilovers at the weekend.

Installed the shorter M Performance bumpstops on the rear and M4 LCAs up front.

Impressed with the results so far, still need to get the alignment done but definitely corners much flatter with sharper turn in. The rear feels a lot more planted over rough B roads where it struggled before.

The ride is slightly firmer but in no way too harsh.

Before:

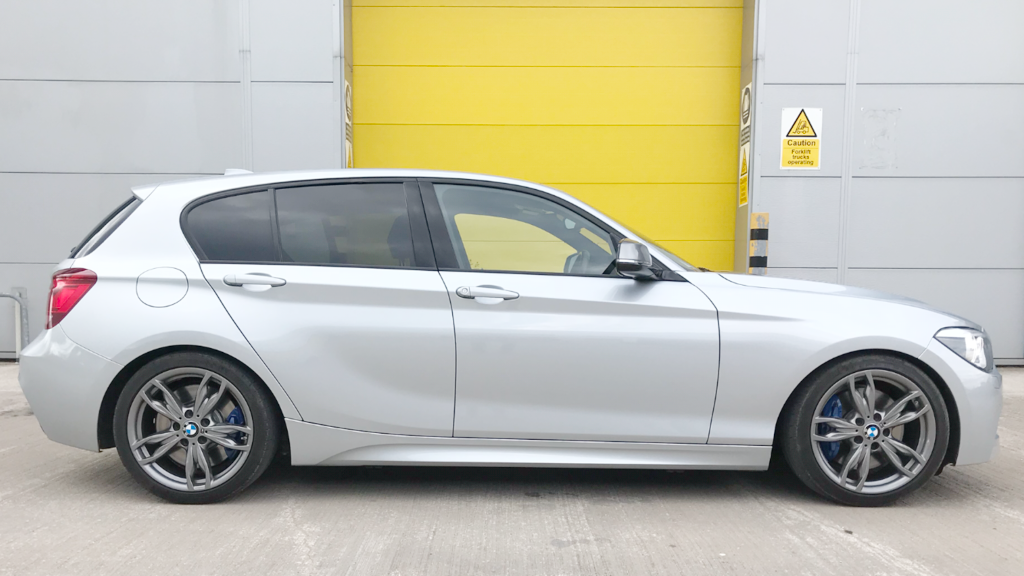

After:

Front - 25mm
Rear - 30mm
2014 F20 M135i - Manual - Glacier Silver - Pro Nav - HK Audio - Drexler LSD - JB4 MHD BEF - BCS Cat - BCS Powervalve - M4 LCAs - Bilstein B14 - aFe Drop In & Scoop
Gone:
2009 E92 335i M Sport
2004 E46 M3
2005 E87 130i M Sport

Torquey
Junior Member
Junior Member
Posts: 20
Joined: Wed May 02, 2018 8:31 pm

Re: Bilstein B14 Coilovers - M135i

Post by Torquey » Thu May 03, 2018 5:16 pm

Hi, first post here. I had the Bilstein b12 pro kit on my 330d, I found it too stiff for our rough uk roads, I came across Birds autos and to cut a long story short had the B3 suspension system fitted, so much better it can handle the rough cornering so much better. The reason for joining this forum is I’m thinking of a baby 135i next year.

mick.86uk
Knowledgeable Member
Knowledgeable Member
Posts: 114
Joined: Mon Apr 18, 2011 9:27 pm
Location: Lancashire

Re: Bilstein B14 Coilovers - M135i

Post by mick.86uk » Thu May 03, 2018 7:22 pm

Just had the alignment checked and toe sorted.

I know the front camber is never exactly the same left and right but mine has more on the right side.

Is this still ok?




Sent from my iPhone using Tapatalk
2014 F20 M135i - Manual - Glacier Silver - Pro Nav - HK Audio - Drexler LSD - JB4 MHD BEF - BCS Cat - BCS Powervalve - M4 LCAs - Bilstein B14 - aFe Drop In & Scoop
Gone:
2009 E92 335i M Sport
2004 E46 M3
2005 E87 130i M Sport

andyjhatton
Knowledgeable Member
Knowledgeable Member
Posts: 108
Joined: Tue Jan 20, 2015 7:54 am

Re: Bilstein B14 Coilovers - M135i

Post by andyjhatton » Thu May 03, 2018 8:29 pm

I wouldn't be happy personally.
Could be that the corner weights are out and the car is leaning (to the right) possibly due to being ballasted on the driver's side only during alignment.

That or some suspension member or subframe has been distorted.
2015 M135i, Pre-LCI, 6MT, Adaptive, Birds ARBs & Quaife LSD, M4 LCA + TS, Bilstein B14, Goodridge lines

mick.86uk
Knowledgeable Member
Knowledgeable Member
Posts: 114
Joined: Mon Apr 18, 2011 9:27 pm
Location: Lancashire

Re: Bilstein B14 Coilovers - M135i

Post by mick.86uk » Fri May 04, 2018 7:45 am

andyjhatton wrote:I wouldn't be happy personally.
Could be that the corner weights are out and the car is leaning (to the right) possibly due to being ballasted on the driver's side only during alignment.

That or some suspension member or subframe has been distorted.
To be fair the garage that did the alignment weren’t the best but the new hunter they were using gives them a step by step guide on how to setup and adjust.

Suspension install was done by a friend mechanic with me giving him a hand. We followed a decent diy from 2addicts and everything went fine.

https://www.2addicts.com/forums/showthr ... ?t=1412603

Looking at some of the other guys alignments it doesn’t look too bad at 20 minutes difference on the camber. I’ve seen Marcos is 18 minutes apart.


Sent from my iPhone using Tapatalk
2014 F20 M135i - Manual - Glacier Silver - Pro Nav - HK Audio - Drexler LSD - JB4 MHD BEF - BCS Cat - BCS Powervalve - M4 LCAs - Bilstein B14 - aFe Drop In & Scoop
Gone:
2009 E92 335i M Sport
2004 E46 M3
2005 E87 130i M Sport
